DANTE AV 4K

12G-SDI and HDMI 2.0 Conversion to and from Dante AV IP Video/Audio Networks

AJA VIDEO SYSTEMS
SKU: AJA-DANTE AV 4K
Categorías: AJA VIDEO SYSTEMS, BROADCAST, Conversores, Conversores de Video IP, OpenGear
Contactanos

    AJA Dante AV 4K-T and Dante AV 4K-R utilize the new Dante AV Ultra solution that enables networked video to be used alongside the industry leading Dante audio-over-IP platform on standard 1 GigE IP networks.

    Both devices support Dante AV Ultra signals up to 4K/UltraHD, with 12G-SDI and HDMI 2.0 inputs or outputs.  Dante AV provides ease-of-use, seamless multi-vendor interoperability, and an integrated control experience that customers have come to expect from AJA Video and Dante by Audinate.

    CARACTERISTICAS

    AJA Dante AV 4K-T and 4K-R Introductory Video

    Watch this video to learn about Dante AV, what it is, what the products can do, and who can benefit from this new AV over IP ecosystem with its low latency, high quality transport of lossless video over popular 1 GigE networks.

    Features

    • Transports up to 4K/UltraHD 60p RGB/4:4:4 video output with ultra low latency and visually lossless quality
    • No need to replace network infrastructure. Dante AV works with cost effective 1 GigE networks
    • Visually stunning Dante AV Ultra video using a network efficient JPEG 2000 codec
    • Fully time aligned and separately routable audio and video streams
    • Compatible with Audinate Dante Controller software on macOS and Windows

    Dante AV 4K-T

    Encode 12G / HDMI video with embedded audio into Dante AV Ultra JPEG 2000

    • Dante AV Ultra Transmitter (JPEG 2000)
    • 4K/UltraHD/2K/HD/VESA
    • 12G-SDI and HDMI 2.0 In
    • 1 GigE POE+ IP
    • Compatible with Dante Controller software for routing Video, Audio, KVM, VISCA, and IR
    • Five year warranty

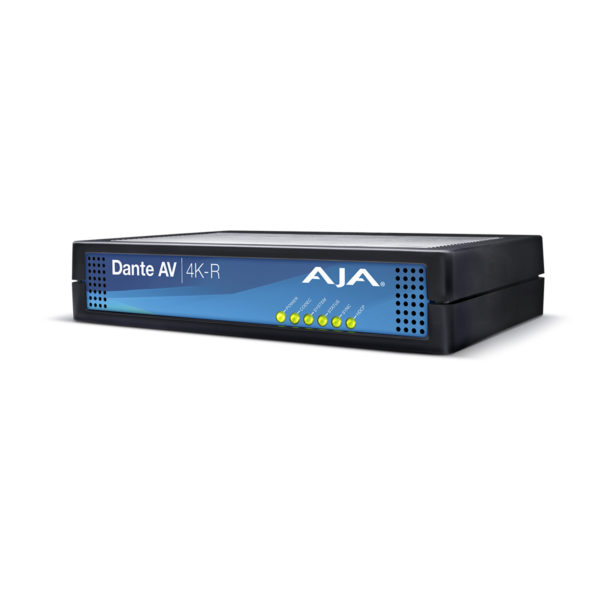

    Dante AV 4K-R

    Decode Dante AV Ultra JPEG 2000 into 12G / HDMI video with embedded audio

    • Dante AV Ultra Receiver (JPEG 2000)
    • 4K/UltraHD/HD/VESA
    • 12G-SDI and HDMI 2.0 Out
    • 1 GigE POE+ IP
    • Compatible with Dante Controller software for routing Video, Audio, KVM, VISCA, and IR
    • Five year warranty

    Connections: AJA Dante AV 4K-T and 4K-R

    ESPECIFICACIONES

    Datos técnicos

    RECURSOS
    Video Formats
    VESA Formats
    Discovery, Registration, and Control
    Media Transport Interfaces
    Video Input Digital (4K-T)
    Video Output Digital (4K-R)
    Audio Input Digital (4K-T) & Audio Output Digital (4K-R)
    Audio Output Analog
    IP Video Input (4K-R) & IP Video Output (4K-T)
    IP Audio Input (4K-R) & IP Audio Output (4K-T)
    Reference
    Codec
    Hardware Interface
    Size (W x D x H)
    Weight
    Power
    Environment
    Video Formats
    • (4K) 4096x2160p
    • (UltraHD) 3840x2160p
    • (2K) 2048x1080p
    • (HD) 1920x1080p
    • (HD) 1280x720p
    VESA Formats
    • (WUXGA) 1920×1200
    • (UXGA) 1600×1200
    • (SXGA) 1280×1024
    • (XGA) 1024×768



    Note: VESA Formats are always RGB 4:4:4 60 8-bit

    Discovery, Registration, and Control
    • Dante Controller Software from Audinate (Windows or Mac)
    • Dante Ecosystem Friendly: Compatible with existing Dante-enabled products
    Media Transport Interfaces
    • Network Interface: Standard 1 GigE Ethernet
    • Audio Flow: Audio Flow x 8 Flows / 8-channels per Flow (unicast or multicast)
    • Video Flow: Video Flow x 1 Flow / 1-channel per Flow (unicast or multicast)
    • Timestamp: Hardware timestamping, supporting sample accurate playback
    Video Input Digital (4K-T)

    1x 12G-SDI BNC, SMPTE 292 (1.5Gb/s), 424, 425-A(3Gb/s), 2081, 2082, 352 SDI Metadata Supported

      • YCbCr 4:2:2
      • 10-bit
      • Two Sample Interleave (2SI) 4K/UltraHD source mapping

    1x 12G SDI

      • (4K) 4096x2160p 50, 59.94, 60
      • (UltraHD) 3840x2160p 50, 59.94, 60

    1x 6G SDI

      • (4K) 4096x2160p 23.98, 24, 25, 29.97, 30
      • (UltraHD) 3840x2160p 23.98, 24, 25, 29.97, 30

    1x 3G-SDI (Level A)

      • (2K) 2048x1080p 50, 59.94, 60
      • (HD) 1920x1080p 50, 59.94, 60

    1x 1.5G-SDI

      • (2K) 2048x1080p 23.98, 24, 25, 29.97, 30
      • (HD) 1920x1080p 23.98, 24, 25, 29.97, 30
      • (HD) 1280x720p 50, 59.94, 60

    1x HDMI Type A connector, HDMI v2.0

      • YCbCr 4:4:4, 4:2:2
      • RGB 4:4:4, SMPTE, or Full RGB
      • 8, 10, 12-bit (4K/UltraHD 4:4:4 limited to 8-bit)
      • (4K) 4096x2160p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
      • (UltraHD) 3840x2160p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
      • (2K) 2048x1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
      • (HD) 1920x1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
      • (HD) 1280x720p 50, 59.94, 60

    (WUXGA) 1920×1200

    (UXGA) 1600×1200

    (SXGA) 1280×1024

    (XGA) 1024×768



    Note: VESA Formats are always RGB 4:4:4 60 8-bit

    Video Output Digital (4K-R)

    1x 12G-SDI BNC, SMPTE 292 (1.5Gb/s), 424, 425-A(3Gb/s), 2081, 2082, 352 SDI Metadata Supported

      • YCbCr 4:2:2
      • 10-bit
      • Two Sample Interleave (2SI) 4K/UltraHD source mapping

    1x 12G SDI

      • (4K) 4096x2160p 50, 59.94, 60
      • (UltraHD) 3840x2160p 50, 59.94, 60

    1x 6G SDI

      • (4K) 4096x2160p 23.98, 24, 25, 29.97, 30
      • (UltraHD) 3840x2160p 23.98, 24, 25, 29.97, 30

    1x 3G-SDI (Level A)

      • (HD) 1920x1080p 50, 59.94, 60

    1x 1.5G-SDI

      • (HD) 1920x1080p 23.98, 24, 25, 29.97, 30
      • (HD) 1280x720p 50, 59.94, 60
    • 1x HDMI Type A connector, HDMI v2.0*
      • YCbCr 4:4:4, 4:2:2, SMPTE, or Full RGB
      • 8, 10, 12-bit (4K/UltraHD 4:4:4 limited to 8-bit)
      • (4K) 4096x2160p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
      • (UltraHD) 3840x2160p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
      • (2K) 2048x1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
      • (HD) 1920x1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
      • (HD) 1280x720p 50, 59.94, 60
    • (WUXGA) 1920×1200
    • (UXGA) 1600×1200
    • (SXGA) 1280×1024
    • (XGA) 1024×768



    Notes:

    1. VESA Formats are always RGB 4:4:4 60 8-bit

    2. Only one input can be used at a time. Unit will auto-detect source, or user can select input in software if both SDI & HDMI inputs are connected.

    *If a connected monitor doesn’t support HDMI protocol, the unit automatically switches to DVI protocol (which does not pass audio).

    Audio Input Digital (4K-T) & Audio Output Digital (4K-R)
    • SDI embedded audio, 24-bit, 8-channel, 48 kHz PCM24
    • HDMI embedded audio, 24-bit, 8-channel, 48 kHz PCM24
    Audio Output Analog
    • 2x RCA analog audio
      • Levels at -10 dBu (nominal)
    IP Video Input (4K-R) & IP Video Output (4K-T)
    • Dante AV Ultra
      • Single video channel
    IP Audio Input (4K-R) & IP Audio Output (4K-T)
    • Dante Audio
      • Up to 8-channel audio, 24-bit per channel, 48 kHz PCM24
      • High quality, low jitter with onboard clock generator for audio
      • SRC Conversion Range: 1:8 to 8:1
      • ASRC Latency: 80 samples (1.6ms 48 kHz)
    Reference
    • 1x BNC
      • (4K-T) Reference Out connector (For future use)
      • (4K-R) Reference Input connector (For future use)
    Codec
    • Video Codec: Optimized implementation of JPEG 2000 codec in FPGA, Licensed By IntoPIX; Dante API management interface
    • Video Resolutions and Color Depth:
      • SDI: Up to 4096×2160 60p; YCbCr 4:2:2 10-bit
      • HDMI: Up to 4096×2160 60p; RGB 4:4:4 8-bit, YCbCr 4:4:4 8-bit, YCbCr 4:2:2 8, 10, 12-bit
    • Audio Formats: Dante Audio over IP
    • Bit Rates: up to 700 Mbps
    • Video Streaming: Unicast or Multicast
    • Copy Protection: HDCP 2.2, HDCP 2.3 for network
    • Latency: 0.5 frame (e.g., 2160p 60 Hz latency is < 8 ms between encoder and decoder), overall latency may increase depending on network configurations
    • Bandwidth 1: 4Kp60 10-bit 4:2:2; 500-600Mbps, results may vary depending on network configuration and management settings
    • Bandwidth 2: 1080p60 10-bit 4:2:2; 150-250Mbps, results may vary depending on network configuration and management settings
    Hardware Interface
    • 1x Neutrik etherCon RJ45 Connector – 1 GigE (Dante AV & POE+)
    • 1x Neutrik etherCon RJ45 Connector – 1 GigE (for future use)
    • 1x DB-9 RS-422/ VISCA Serial Port
    • 2x USB 2.0 Type A Connector
    • 1x USB 2.0 Mini-B Host connector
    • 3.5mm IR Tx jack for IR over IP
    • 3.5mm IR Rx jack for IR over IP
    • Front LED Indicators: Power, Codec, System, Status, Sync, & HDCP
    Size (W x D x H)

    8.74″ x 7.09″ x 1.65″ (222.0 x 180.09 x 41.91 mm)

    Weight

    3.1 lbs (1.5 kg)

    Power

    30 Watts Maximum; 12V DC IN has priority over Ethernet 1 POE+. Ethernet 1 POE+ will become active a fraction of a second after 12V DC IN is disconnected.

    Environment
    • Safe Operating Temperature: 0 to 40 C (32 to 104 F)
    • Safe Storage Temperature (Power OFF): -40 to 60 C (-40 to 140 F)
    • Operating Relative Humidity: 10-90% noncondensing
    • Operating Altitude: <3,000 meters (<10,000 feet)
